12W 24V Constant Voltage LED Driver IP67
$ 26.33
- Product descriptionALCV012 LED DRIVER SERIES IP67 CONSTANT VOLTAGE LED DRIVER - ALCV012-024-67 FEATURES Universal AC Input Range 90 ~ 264VAC• Class II Power Design without Earth Pin• Fully Isolated Plastic Case• Protections: OCP/SCP• No Load Consumption <0.5W at 230VACON/OFF APPLICATIONS Can be used with 24V light sources, for example, with LED Strips: aLED StripsYou can illuminate a 250lm/m 5m reel (1.7W/m x 5m = 8.5W) LED strip from our selection entirely with this CV driver.IP Class IP67 Product informationTechnical Data OUTPUT DC Voltage Range: 24VRated Current: 0-500mARated Max. Power: 12WVoltage Tolerance: ± 5%Ripple & Noise (Max.) note.2: 240 mVp-pEfficiency (Min): 81% at 230 VAC full load 83% at 230 VAC full loadSet up Time (Max): < 1S / 115 VAC at full load / < 0.5S / 230 VAC at full load INPUT Rated Voltage: 100 - 240VACVoltage Range: 90-264 VACFrequency Range: 47 Hz ~ 63 HzAC Current (Max.): 0.3A at 115 VAC /0.15A at 230 VACInrush Current (Max.): ≤ 30A at 115 VAC / ≤ 40A at 230 VACLeakage Current: < 0.25mA / 240 VACNo Load Consumption: < 0.5W at 230VAC PROTECTIONS Over Current. 110% - 150% Constant current limiting, auto-recoveryShort Circuit: Hiccup mode, recovers automatically after fault condition is removed ENVIRONMENT Operation Temp.: -10°C ~ 50°C full load (Refer to output load derating curve)Operation Humidity: 20% ~ 90% RH non-condensing.Storage Temp & Humidity: -20 ~ 80°C ,10% ~ 90% RH DIMENSIONS Length: 75,3mmWidth: 36mmHeight: 24mmWeight: 97,4g SAFETY Safety Standards: EN61347-1,EN61347-2-13;Withstand Voltage: I/P - O/P: 3.75K VACEMI Conduction & radiation: meet Compliance to EN55015; FCC PART15 CLASSBEMS immunity: meet Compliance to EN61000-4- 2,3,4,5,6,11;EN61547 Shipping Product can be shipped with these shipping methods. PostNord MyPack Collect 8,00 € Delivery in 1-3 business days. Package will be kept for 7 days at the pickup point. PostNord MyPack Home (Long Package) 25,00 € Delivery in 2-6 business days. Door to door service. for long packages. PostNord MyPack Home Finland 19,00 € Door to door service, delivery in 2-6 business days. PostNord Finland Parcel (For companies) 12,00 € Delivery in 1-3 business days. Door to Door service for business addresses. Matkahuolto Lähellä-package 8,50 € Delivery usually in 2-5 business days. The package will be kept for 7 days in the pick up location. Posti Standard Delivery Finland 9,00 € Delivery in 2-5 business days. DSV Parcel service point 8,50 € Delivery in 2-5 business days. Pick Up from Warehouse 0,00 € Pick up from warehouse (Rajakivenkatu 8, 20740 Turku) between 9AM-3PM on weekdays (closed on weekends and on national holidays). Products are ready for pick up in 3 hours. Product bundlesThe product belongs to the following bundles:5,5W 24Vdc 15° 330lm 3000K Ra97 aLED SUVISPOT Black SQ Frame LED Driver (non dimmable)
200W 24V IP67 CV Driver
30W 24V CV Driver

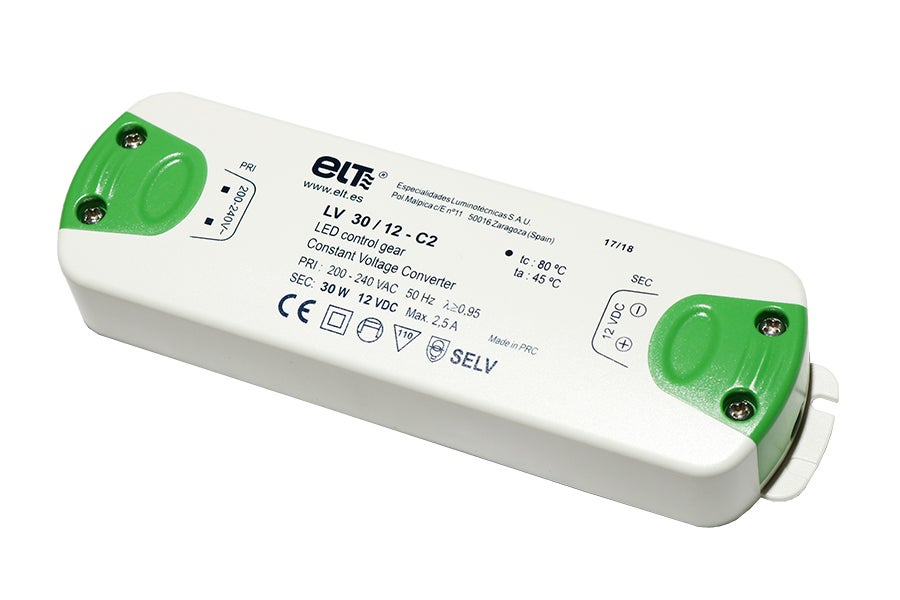

30W 12V LED Driver LV 30/12-C2 Constant Voltage
